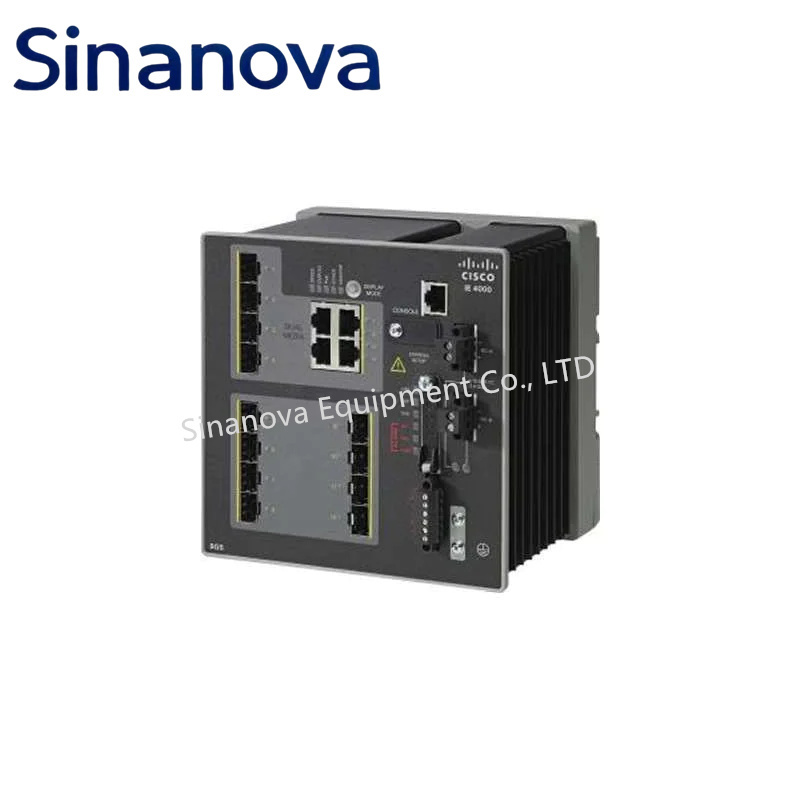

IE 4000 8GS4G E Rugged Ethernet Switch for Utilities and Transportation
Product Brief Description
The Cisco IE-4000-8GS4G-E is a high-performance industrial Ethernet switch from the Cisco Catalyst IE4000 Series, designed for mission-critical industrial environments. Featuring 8 Gigabit Ethernet ports and 4 Gigabit SFP uplinks, it provides reliable, scalable, and secure connectivity for industrial automation, transportation, utilities, and industrial IoT networks. With advanced Layer 2 and Layer 3 features, redundant power inputs, and ruggedized design, the IE-4000-8GS4G-E ensures consistent operation under harsh environmental conditions.
Product Details Table
| Attribute | Description |
| Brand | Cisco |
| Model | IE-4000-8GS4G-E |
| Series | Cisco Catalyst IE4000 Rugged Series |
| Ports | 8 x 10/100/1000 RJ-45, 4 x Gigabit SFP uplinks |
| PoE Capability | Not supported |
| Form Factor | Compact, DIN rail or wall mount |
| Operating Temperature | -40°C to 75°C |
| Power Options | Redundant DC input |
| Management | Cisco IOS XE, CLI, SNMP, web interface |
| Security | IEEE 802.1X, ACLs, MACsec, secure boot |
| Applications | Industrial automation, utilities, transportation, smart manufacturing, IoT |
| Warranty | Limited lifetime hardware warranty |
Key Features
- 8 Gigabit Ethernet ports with 4 SFP uplinks for flexible high-speed connectivity
- Rugged, fanless design built for harsh industrial environments
- Wide operating temperature range from -40°C to 75°C
- Advanced Layer 2 and Layer 3 switching capabilities for industrial networks
- Redundant DC power inputs for enhanced uptime and reliability
- Enhanced security with IEEE 802.1X, MACsec, and ACLs
- Cisco IOS XE support for network programmability, automation, and monitoring
- DIN rail and wall mountable form factor for flexible deployment
- High network resiliency with support for industrial redundancy protocols
- Ideal for smart grids, industrial IoT, transportation, and factory automation
Full Product Specifications
| Specification | Value |
| Ethernet Ports | 8 x 10/100/1000 RJ-45 |
| Uplink Ports | 4 x Gigabit SFP |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 23.8 Mpps |
| Power Supply | Redundant DC input (24VDC to 57VDC) |
| Power Consumption | Typical 30W, maximum 65W |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Rating | IP30, ruggedized, fanless |
| Dimensions | 120 x 160 x 130 mm approx. |
| Weight | 2.5 kg approx. |
| Software Features | VLANs, QoS, STP, RSTP, MSTP, IGMP Snooping, static routing |
| Security Features | IEEE 802.1X, DHCP Snooping, Dynamic ARP Inspection, MACsec |
| Management | Cisco IOS XE, CLI, SNMPv3, web interface, PnP support |
| Certifications | IEC 61850, IEEE 1613, Class 1 Div 2 compliance |
Similar Models Comparison Table
| Model | Ports Configuration | PoE Support | Temperature Range | Uplink Ports |
| IE-4000-8GS4G-E | 8 x RJ-45, 4 x Gigabit SFP | No PoE | -40°C to 75°C | 4 SFP |
| IE-3300-8T2S-E | 8 x RJ-45, 2 x SFP | No PoE | -40°C to 70°C | 2 SFP |
| IE-3300-8P2S-E | 8 x RJ-45 PoE+, 2 x SFP | PoE+ | -40°C to 70°C | 2 SFP |
Latest Model in the Same Series
| Model | Ports Configuration | Temperature Range | Power Input | Special Features |
| IE-4000-8P4G-E | 8 x RJ-45 PoE+, 4 x Gigabit SFP | -40°C to 75°C | Redundant DC | PoE+ support, high reliability |
